TRC-25.4

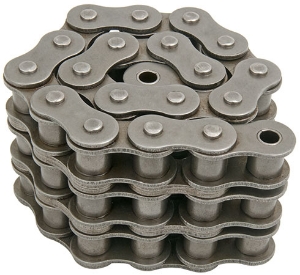

Ondrives Precision Gears and Gearboxes Part number TRC-25.4

TRC-25.4

Triplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Ondrives Precision Gears and Gearboxes Part number TRC-25.4 Ondrives Precision Gears and Gearboxes Part number TRC-25.4

Product specifications

MaterialSteel DIN 8187
ISO No.16B-3
Pitch/Lead25.4
Dimension [b1]17.02
Dimension [b2]25.4
Dimension [d1]8.28
Dimension [d3]15.88
Dimension [F1]99.9
Dimension [F2]105.3
Dimension [h]21
Dimension [s1]4
Dimension [s2]3
Dimension [e]31.88
Bearing Area [f cm²]6.31
Breaking Load [FB N]160000
Chain Weight [q kg/m]8

Product specifications

MaterialSteel DIN 8187
ISO No.16B-3
Pitch/Lead25.4
Dimension [b1]17.02
Dimension [b2]25.4
Dimension [d1]8.28
Dimension [d3]15.88
Dimension [F1]99.9
Dimension [F2]105.3
Dimension [h]21
Dimension [s1]4
Dimension [s2]3
Dimension [e]31.88
Bearing Area [f cm²]6.31
Breaking Load [FB N]160000
Chain Weight [q kg/m]8
