TRC-19.05

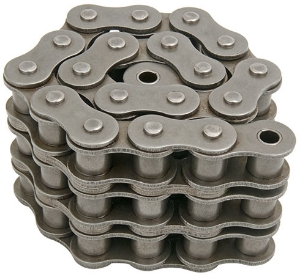

Ondrives Precision Gears and Gearboxes Part number TRC-19.05

TRC-19.05

Triplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Ondrives Precision Gears and Gearboxes Part number TRC-19.05 Ondrives Precision Gears and Gearboxes Part number TRC-19.05

Product specifications

MaterialSteel DIN 8187
ISO No.12B-3
Pitch/Lead19.05
Dimension [b1]11.68
Dimension [b2]15.62
Dimension [d1]5.72
Dimension [d3]12.06
Dimension [F1]61.7
Dimension [F2]66.3
Dimension [h]16.1
Dimension [s1]1.8
Dimension [s2]1.8
Dimension [e]19.46
Bearing Area [f cm²]2.68
Breaking Load [FB N]86700
Chain Weight [q kg/m]3.8

Product specifications

MaterialSteel DIN 8187
ISO No.12B-3
Pitch/Lead19.05
Dimension [b1]11.68
Dimension [b2]15.62
Dimension [d1]5.72
Dimension [d3]12.06
Dimension [F1]61.7
Dimension [F2]66.3
Dimension [h]16.1
Dimension [s1]1.8
Dimension [s2]1.8
Dimension [e]19.46
Bearing Area [f cm²]2.68
Breaking Load [FB N]86700
Chain Weight [q kg/m]3.8
