TRC-15.88

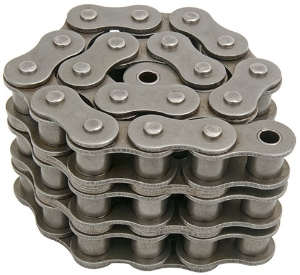

Ondrives Precision Gears and Gearboxes Part number TRC-15.88

TRC-15.88

Triplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Ondrives Precision Gears and Gearboxes Part number TRC-15.88 Ondrives Precision Gears and Gearboxes Part number TRC-15.88

Product specifications

MaterialSteel DIN 8187
ISO No.10B-3
Pitch/Lead15.875
Dimension [b1]9.65
Dimension [b2]13.28
Dimension [d1]5.08
Dimension [d3]10.16
Dimension [F1]52.6
Dimension [F2]56.9
Dimension [h]14.7
Dimension [s1]1.6
Dimension [s2]1.6
Dimension [e]16.59
Bearing Area [f cm²]2.02
Breaking Load [FB N]66700
Chain Weight [q kg/m]2.8

Product specifications

MaterialSteel DIN 8187
ISO No.10B-3
Pitch/Lead15.875
Dimension [b1]9.65
Dimension [b2]13.28
Dimension [d1]5.08
Dimension [d3]10.16
Dimension [F1]52.6
Dimension [F2]56.9
Dimension [h]14.7
Dimension [s1]1.6
Dimension [s2]1.6
Dimension [e]16.59
Bearing Area [f cm²]2.02
Breaking Load [FB N]66700
Chain Weight [q kg/m]2.8
