TLB-1610-30

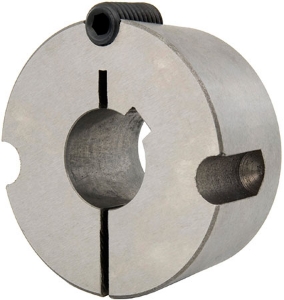

Ondrives Precision Gears and Gearboxes Part number TLB-1610-30

TLB-1610-30

Taper Bushes, Type A (3 Holes)
Ondrives Precision Gears and Gearboxes Part number TLB-1610-30 Ondrives Precision Gears and Gearboxes Part number TLB-1610-30 Ondrives Precision Gears and Gearboxes Part number TLB-1610-30 Ondrives Precision Gears and Gearboxes Part number TLB-1610-30

Product specifications

Bush Type1610
No. of Holes3 (Type A)
Bore Diameter [d]30
Bush Length [L]25
Outside Diameter [OD]57.0
Grubscrew/Caphead Size (BSW)3/8" x 5/8"
Grubscrew/Caphead Torque (Nm)19.6
Approx. Mass (Kg)0.35

Product specifications

Bush Type1610
No. of Holes3 (Type A)
Bore Diameter [d]30
Bush Length [L]25
Outside Diameter [OD]57.0
Grubscrew/Caphead Size (BSW)3/8" x 5/8"
Grubscrew/Caphead Torque (Nm)19.6
Approx. Mass (Kg)0.35
