Sprockets
38.1 (1 1/2") Pitch Sprockets
TCS38.1 : Bossed Triplex Sprockets
TCS38.1-38
TCS38.1-38

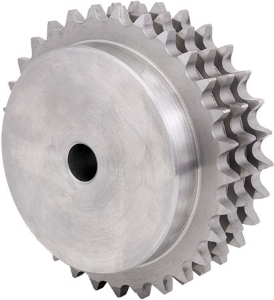

Bossed Cast Iron GG20 Triplex Sprockets, 1 1/2" (38.1mm) Pitch (ISO 24B-3), 1" (25.4mm) Roller Diameter
Product specifications
Material
Cast Iron GG20
No. of Teeth [z]
38
ISO No.
24B-3
Pitch/Lead
38.1
Tip Diameter [de]
476.5
Ref. Diameter [dp]
461.39
Hub Diameter [BD]
160
Bore Diameter [di]
40
Sprocket Width [E]
150
Mass kg
145.28
Specifications
Overview
Product specifications
Material
Cast Iron GG20
No. of Teeth [z]
38
ISO No.
24B-3
Pitch/Lead
38.1
Tip Diameter [de]
476.5
Ref. Diameter [dp]
461.39
Hub Diameter [BD]
160
Bore Diameter [di]
40
Sprocket Width [E]
150
Mass kg
145.28
