TCS38.1-13

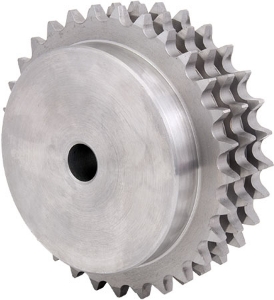

Ondrives Precision Gears and Gearboxes Part number TCS38.1-13

TCS38.1-13

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1 1/2" (38.1mm) Pitch (ISO 24B-3), 1" (25.4mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS38.1-13 Ondrives Precision Gears and Gearboxes Part number TCS38.1-13

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]13
ISO No.24B-3
Pitch/Lead38.1
Tip Diameter [de]173
Ref. Diameter [dp]159.18
Hub Diameter [BD]114
Bore Diameter [di]30
Sprocket Width [E]150
Mass kg15.02
