TCS25.4 : Bossed Triplex Sprockets

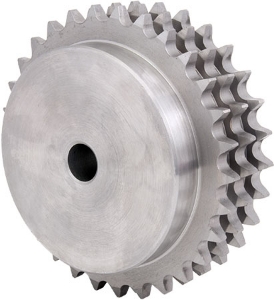

TCS25.4-26
TCS25.4-26
Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-3), 5/8" (15.875mm) Roller Diameter
Product specifications
Material
C43 UNI 7847 Carbon Steel
No. of Teeth [z]
26
ISO No.
16B-3
Pitch/Lead
25.4
Tip Diameter [de]
222.3
Ref. Diameter [dp]
210.72
Hub Diameter [BD]
130
Bore Diameter [di]
30
Sprocket Width [E]
100
Mass kg
20.34
Specifications
Overview
Product specifications
Material
C43 UNI 7847 Carbon Steel
No. of Teeth [z]
26
ISO No.
16B-3
Pitch/Lead
25.4
Tip Diameter [de]
222.3
Ref. Diameter [dp]
210.72
Hub Diameter [BD]
130
Bore Diameter [di]
30
Sprocket Width [E]
100
Mass kg
20.34
