TCS25.4 : Bossed Triplex Sprockets

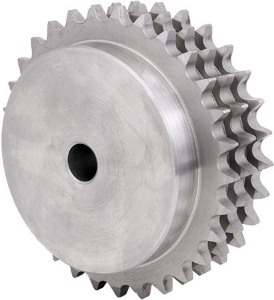

TCS25.4-17
TCS25.4-17
Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-3), 5/8" (15.875mm) Roller Diameter
Product specifications
Material
C43 UNI 7847 Carbon Steel
No. of Teeth [z]
17
ISO No.
16B-3
Pitch/Lead
25.4
Tip Diameter [de]
149.8
Ref. Diameter [dp]
138.22
Hub Diameter [BD]
112
Bore Diameter [di]
25
Sprocket Width [E]
100
Mass kg
8.60
Specifications
Overview
Product specifications
Material
C43 UNI 7847 Carbon Steel
No. of Teeth [z]
17
ISO No.
16B-3
Pitch/Lead
25.4
Tip Diameter [de]
149.8
Ref. Diameter [dp]
138.22
Hub Diameter [BD]
112
Bore Diameter [di]
25
Sprocket Width [E]
100
Mass kg
8.60
