TCS15.88-22

Ondrives Precision Gears and Gearboxes Part number TCS15.88-22

TCS15.88-22

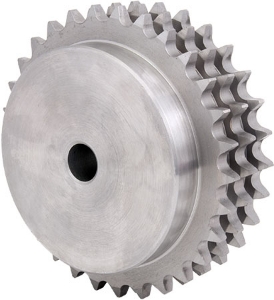

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 5/8" (15.875mm) Pitch (ISO 10B-3), 10.16mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS15.88-22 Ondrives Precision Gears and Gearboxes Part number TCS15.88-22

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]22
ISO No.10B-3
Pitch/Lead15.875
Tip Diameter [de]118.4
Ref. Diameter [dp]111.55
Hub Diameter [BD]90
Bore Diameter [di]20
Sprocket Width [E]60
Mass [kg]3.48

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]22
ISO No.10B-3
Pitch/Lead15.875
Tip Diameter [de]118.4
Ref. Diameter [dp]111.55
Hub Diameter [BD]90
Bore Diameter [di]20
Sprocket Width [E]60
Mass [kg]3.48
