TCS12.7/7.75-8

Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-8

TCS12.7/7.75-8

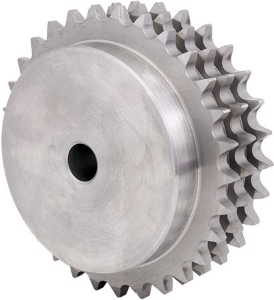

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1/2" (12.7mm) Pitch (ISO 08B-3), 8.51mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-8 Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-8

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]8
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]38
Ref. Diameter [dp]33.18
Hub Diameter [BD]20
Bore Diameter [di]10
Sprocket Width [E]46
Mass [kg]0.13

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]8
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]38
Ref. Diameter [dp]33.18
Hub Diameter [BD]20
Bore Diameter [di]10
Sprocket Width [E]46
Mass [kg]0.13
