TCS12.7/7.75-48

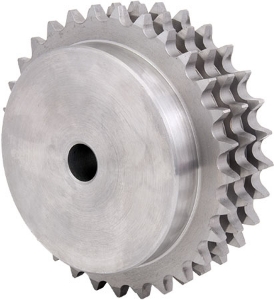

Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-48

TCS12.7/7.75-48

Bossed Cast Iron GG20 Triplex Sprockets, 1/2" (12.7mm) Pitch (ISO 08B-3), 8.51mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-48 Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-48

Product specifications

MaterialCast Iron GG20
No. of Teeth [z]48
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]200.7
Ref. Diameter [dp]194.18
Hub Diameter [BD]120
Bore Diameter [di]25
Sprocket Width [E]68
Mass kg9.90

Product specifications

MaterialCast Iron GG20
No. of Teeth [z]48
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]200.7
Ref. Diameter [dp]194.18
Hub Diameter [BD]120
Bore Diameter [di]25
Sprocket Width [E]68
Mass kg9.90
