TCS12.7/7.75-21

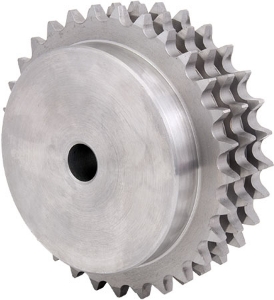

Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-21

TCS12.7/7.75-21

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1/2" (12.7mm) Pitch (ISO 08B-3), 8.51mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-21 Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-21

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]21
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]90.1
Ref. Diameter [dp]85.22
Hub Diameter [BD]70
Bore Diameter [di]16
Sprocket Width [E]55
Mass [kg]1.79

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]21
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]90.1
Ref. Diameter [dp]85.22
Hub Diameter [BD]70
Bore Diameter [di]16
Sprocket Width [E]55
Mass [kg]1.79
