TCS12.7/7.75-19

Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-19

TCS12.7/7.75-19

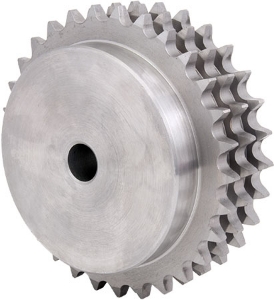

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1/2" (12.7mm) Pitch (ISO 08B-3), 8.51mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-19 Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-19

Product specifications

Material C43 UNI 7847 Carbon Steel
No. of Teeth [z] 19
ISO No. 08B-3
Pitch/Lead 12.7
Tip Diameter [de] 82
Ref. Diameter [dp] 77.16
Hub Diameter [BD] 62
Bore Diameter [di] 16
Sprocket Width [E] 50
Mass [kg] 1.3
