TCS12.7/7.75-17

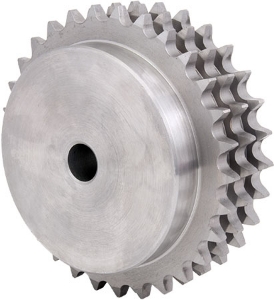

Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-17

TCS12.7/7.75-17

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1/2" (12.7mm) Pitch (ISO 08B-3), 8.51mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-17 Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-17

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]17
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]74
Ref. Diameter [dp]69.11
Hub Diameter [BD]54
Bore Diameter [di]16
Sprocket Width [E]50
Mass [kg]0.99

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]17
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]74
Ref. Diameter [dp]69.11
Hub Diameter [BD]54
Bore Diameter [di]16
Sprocket Width [E]50
Mass [kg]0.99
