UCT216

Ondrives Precision Gears and Gearboxes Part number UCT216

UCT216

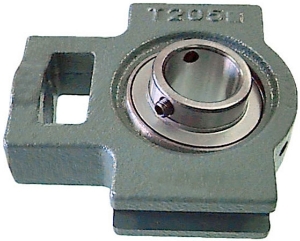

Cast Iron Takeup Ball Bearing Unit with Set Screws. 12 - 85mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCT216 Ondrives Precision Gears and Gearboxes Part number UCT216

Product specifications

Shaft Diameter80
Dimension [N1]32
Dimension [b]23
Dimension [H2]111
Dimension [N2]70
Dimension [N]41
Dimension [L3]121
Dimension [A1]26
Dimension [H1]165
Dimension [k] [H]184
Dimension [L]235
Dimension [A2]51
Dimension [A]70
Dimension [r]95
Dimension [L1]140
Dimension [B]82.6
Dimension [S]33.3
Dynamic Load Rating [N]72500
Static Load Rating [N]53000
Mass [kg]8.2
