UCT211

Ondrives Precision Gears and Gearboxes Part number UCT211

UCT211

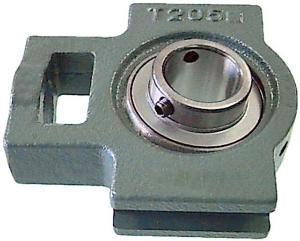

Cast Iron Takeup Ball Bearing Unit with Set Screws. 12 - 85mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCT211 Ondrives Precision Gears and Gearboxes Part number UCT211

Product specifications

Shaft Diameter55
Dimension [N1]25
Dimension [b]21
Dimension [H2]102
Dimension [N2]64
Dimension [N]35
Dimension [L3]95
Dimension [A1]22
Dimension [H1]130
Dimension [k] [H]146
Dimension [L]171
Dimension [A2]38
Dimension [A]64
Dimension [r]65
Dimension [L1]106
Dimension [B]55.6
Dimension [S]22.2
Dynamic Load Rating [N]43500
Static Load Rating [N]29300
Mass [kg]3.9

Product specifications

Shaft Diameter55
Dimension [N1]25
Dimension [b]21
Dimension [H2]102
Dimension [N2]64
Dimension [N]35
Dimension [L3]95
Dimension [A1]22
Dimension [H1]130
Dimension [k] [H]146
Dimension [L]171
Dimension [A2]38
Dimension [A]64
Dimension [r]65
Dimension [L1]106
Dimension [B]55.6
Dimension [S]22.2
Dynamic Load Rating [N]43500
Static Load Rating [N]29300
Mass [kg]3.9
