UCT209

Ondrives Precision Gears and Gearboxes Part number UCT209

UCT209

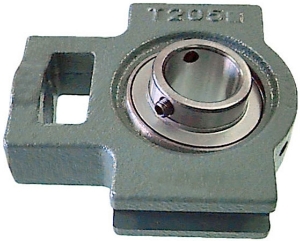

Cast Iron Takeup Ball Bearing Unit with Set Screws. 12 - 85mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCT209 Ondrives Precision Gears and Gearboxes Part number UCT209

Product specifications

Shaft Diameter45
Dimension [N1]19
Dimension [b]18
Dimension [H2]83
Dimension [N2]49
Dimension [N]29
Dimension [L3]83
Dimension [A1]16
Dimension [H1]102
Dimension [k] [H]117
Dimension [L]145
Dimension [A2]35
Dimension [A]49
Dimension [r]57
Dimension [L1]88
Dimension [B]49.2
Dimension [S]19
Dynamic Load Rating [N]31500
Static Load Rating [N]20400
Mass [kg]2.4

Product specifications

Shaft Diameter45
Dimension [N1]19
Dimension [b]18
Dimension [H2]83
Dimension [N2]49
Dimension [N]29
Dimension [L3]83
Dimension [A1]16
Dimension [H1]102
Dimension [k] [H]117
Dimension [L]145
Dimension [A2]35
Dimension [A]49
Dimension [r]57
Dimension [L1]88
Dimension [B]49.2
Dimension [S]19
Dynamic Load Rating [N]31500
Static Load Rating [N]20400
Mass [kg]2.4
