UCT207

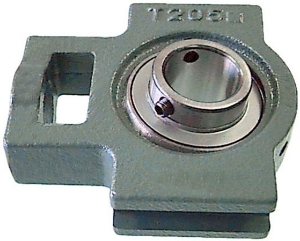

Ondrives Precision Gears and Gearboxes Part number UCT207

UCT207

Cast Iron Takeup Ball Bearing Unit with Set Screws. 12 - 85mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCT207 Ondrives Precision Gears and Gearboxes Part number UCT207

Product specifications

Shaft Diameter35
Dimension [N1]16
Dimension [b]15
Dimension [H2]64
Dimension [N2]37
Dimension [N]22
Dimension [L3]64
Dimension [A1]12
Dimension [H1]89
Dimension [k] [H]102
Dimension [L]129
Dimension [A2]30
Dimension [A]37
Dimension [r]51
Dimension [L1]78
Dimension [B]42.9
Dimension [S]17.5
Dynamic Load Rating [N]25700
Static Load Rating [N]15300
Mass [kg]1.6

Product specifications

Shaft Diameter35
Dimension [N1]16
Dimension [b]15
Dimension [H2]64
Dimension [N2]37
Dimension [N]22
Dimension [L3]64
Dimension [A1]12
Dimension [H1]89
Dimension [k] [H]102
Dimension [L]129
Dimension [A2]30
Dimension [A]37
Dimension [r]51
Dimension [L1]78
Dimension [B]42.9
Dimension [S]17.5
Dynamic Load Rating [N]25700
Static Load Rating [N]15300
Mass [kg]1.6
