UCT206

Ondrives Precision Gears and Gearboxes Part number UCT206

UCT206

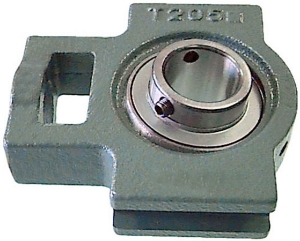

Cast Iron Takeup Ball Bearing Unit with Set Screws. 12 - 85mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCT206 Ondrives Precision Gears and Gearboxes Part number UCT206

Product specifications

Shaft Diameter30
Dimension [N1]16
Dimension [b]12
Dimension [H2]56
Dimension [N2]37
Dimension [N]22
Dimension [L3]57
Dimension [A1]12
Dimension [H1]89
Dimension [k] [H]102
Dimension [L]113
Dimension [A2]28
Dimension [A]37
Dimension [r]43
Dimension [L1]70
Dimension [B]38.1
Dimension [S]15.9
Dynamic Load Rating [N]19500
Static Load Rating [N]11300
Mass [kg]1.3

Product specifications

Shaft Diameter30
Dimension [N1]16
Dimension [b]12
Dimension [H2]56
Dimension [N2]37
Dimension [N]22
Dimension [L3]57
Dimension [A1]12
Dimension [H1]89
Dimension [k] [H]102
Dimension [L]113
Dimension [A2]28
Dimension [A]37
Dimension [r]43
Dimension [L1]70
Dimension [B]38.1
Dimension [S]15.9
Dynamic Load Rating [N]19500
Static Load Rating [N]11300
Mass [kg]1.3
