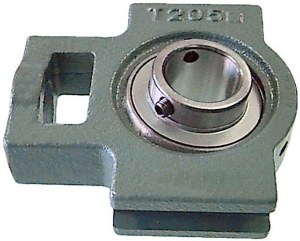

UCT205
UCT205
Cast Iron Takeup Ball Bearing Unit with Set Screws. 12 - 85mm Bores.
Product specifications
Shaft Diameter
25
Dimension [N1]
16
Dimension [b]
12
Dimension [H2]
51
Dimension [N2]
32
Dimension [N]
19
Dimension [L3]
51
Dimension [A1]
12
Dimension [H1]
76
Dimension [k] [H]
89
Dimension [L]
97
Dimension [A2]
24
Dimension [A]
32
Dimension [r]
35
Dimension [L1]
62
Dimension [B]
34.1
Dimension [S]
14.3
Dynamic Load Rating [N]
14000
Static Load Rating [N]
7850
Mass [kg]
0.8
Specifications
Overview
Product specifications
Shaft Diameter
25
Dimension [N1]
16
Dimension [b]
12
Dimension [H2]
51
Dimension [N2]
32
Dimension [N]
19
Dimension [L3]
51
Dimension [A1]
12
Dimension [H1]
76
Dimension [k] [H]
89
Dimension [L]
97
Dimension [A2]
24
Dimension [A]
32
Dimension [r]
35
Dimension [L1]
62
Dimension [B]
34.1
Dimension [S]
14.3
Dynamic Load Rating [N]
14000
Static Load Rating [N]
7850
Mass [kg]
0.8
