Home
Timing Pulleys
T Standard Timing Pulleys & Belts
T5 : Pulley 5mm Pitch 25mm Belt Width

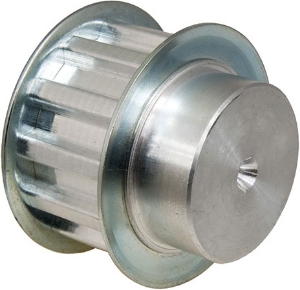

36T5/25-2
36T5/25-2
T Synchronous Timing Pulley, 5mm Pitch, To Suit 25mm Wide Belts
Product specifications
Pulley Tooth
T5
Belt Width
25
Material
Aluminium (6082-T6)
No. of Teeth [z]
25
Execution
1F
PCD [d0]
39.79
Tip Diameter [dk]
38.95
Flange Diameter [Df]
44
Hub Diameter [Dm]
26
Face Width [F]
30
Overall Width [L]
36
Bore Diameter [d]
8
No. of Flanges
2
Specifications
Technical
Overview
Product specifications
Pulley Tooth
T5
Belt Width
25
Material
Aluminium (6082-T6)
No. of Teeth [z]
25
Execution
1F
PCD [d0]
39.79
Tip Diameter [dk]
38.95
Flange Diameter [Df]
44
Hub Diameter [Dm]
26
Face Width [F]
30
Overall Width [L]
36
Bore Diameter [d]
8
No. of Flanges
2
