Timing Pulleys
T Standard Timing Pulleys & Belts
T5 : Pulley 5mm Pitch 25mm Belt Width

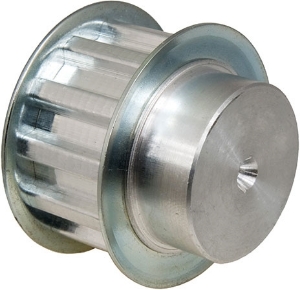

36T5/16-2S
36T5/16-2S
T Synchronous Timing Pulley, 5mm Pitch, To Suit 25mm Wide Belts
Product specifications
Pulley Tooth
T5
Belt Width
25
Material
AISI 303 (EN 1.4305) Stainless Steel
No. of Teeth [z]
16
Execution
1F
PCD [d0]
25.46
Tip Diameter [dk]
24.60
Flange Diameter [Df]
32
Hub Diameter [Dm]
18
Face Width [F]
30
Overall Width [L]
36
Bore Diameter [d]
6
No. of Flanges
2
Specifications
Technical
Overview
Product specifications
Pulley Tooth
T5
Belt Width
25
Material
AISI 303 (EN 1.4305) Stainless Steel
No. of Teeth [z]
16
Execution
1F
PCD [d0]
25.46
Tip Diameter [dk]
24.60
Flange Diameter [Df]
32
Hub Diameter [Dm]
18
Face Width [F]
30
Overall Width [L]
36
Bore Diameter [d]
6
No. of Flanges
2
