16T2.5/19-2

Ondrives Precision Gears and Gearboxes Part number 16T2.5/19-2

16T2.5/19-2

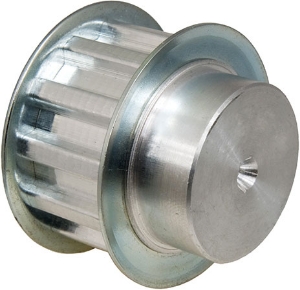

T Synchronous Timing Pulley, 2.5mm Pitch, To Suit 6mm Wide Belts
Ondrives Precision Gears and Gearboxes Part number 16T2.5/19-2 Ondrives Precision Gears and Gearboxes Part number 16T2.5/19-2

Product specifications

MaterialAluminium (6082-T6)
Pulley ToothT2.5
No. of Teeth [z]19
Belt Width6
Execution1F
PCD [d0]15.12
Tip Diameter [dk]14.60
Flange Diameter [Df]20
Hub Diameter [Dm]10
Face Width [F]9
Overall Width [L]16
Bore Diameter [d]Centre Drilled or Pilot Bored
No. of Flanges2

Product specifications

MaterialAluminium (6082-T6)
Pulley ToothT2.5
No. of Teeth [z]19
Belt Width6
Execution1F
PCD [d0]15.12
Tip Diameter [dk]14.60
Flange Diameter [Df]20
Hub Diameter [Dm]10
Face Width [F]9
Overall Width [L]16
Bore Diameter [d]Centre Drilled or Pilot Bored
No. of Flanges2
