47T10/60-0S

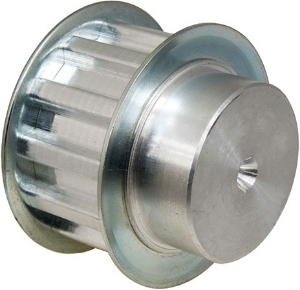

Ondrives Precision Gears and Gearboxes Part number 47T10/60-0S

47T10/60-0S

T Synchronous Timing Pulley, 10mm Pitch, To Suit 32mm Wide Belts
Ondrives Precision Gears and Gearboxes Part number 47T10/60-0S Ondrives Precision Gears and Gearboxes Part number 47T10/60-0S

Product specifications

Pulley ToothT10
Belt Width32
MaterialAISI 303 (EN 1.4305) Stainless Steel
No. of Teeth [z]60
Execution2
PCD [d0]190.99
Tip Diameter [dk]189
Hub Diameter [Dm]110
Face Width [F]37
Overall Width [L]47
Bore Diameter [d]16
No. of Flanges0

Product specifications

Pulley ToothT10
Belt Width32
MaterialAISI 303 (EN 1.4305) Stainless Steel
No. of Teeth [z]60
Execution2
PCD [d0]190.99
Tip Diameter [dk]189
Hub Diameter [Dm]110
Face Width [F]37
Overall Width [L]47
Bore Diameter [d]16
No. of Flanges0
