WU50-060T1ZA

Ondrives Precision Gears and Gearboxes Part number WU50-060T1ZA

WU50-060T1ZA

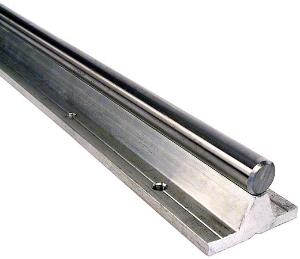

Aluminium Shaft Support Assembly for Open Type Ball Bushings (Includes Shaft), Drilled with T1 Hole Spacing
Ondrives Precision Gears and Gearboxes Part number WU50-060T1ZA Ondrives Precision Gears and Gearboxes Part number WU50-060T1ZA Ondrives Precision Gears and Gearboxes Part number WU50-060T1ZA

Product specifications

Diameter [d] h660
Dimension [H] ±0.0268
Dimension [A]94
Dimension [M] -0.312.5
Dimension [B]23
Dimension [a°]46
Dimension [V]10
Dimension [D]22
Dimension [J]14.5
Dimension [O]15
BoltM14x50
Dimension [U]11
Dimension [E]72
Hole Spacing [T1]300
Length600
