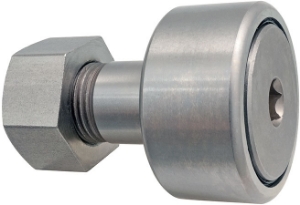

CF18UU
CF18UU
Steel Cam Follower with Cylindrical Outer Ring, 18mm Stud Dia, 40mm Bearing Dia.
Product specifications
Stud Dia. [d]
18
Thread [d]
M18 x 1.5
Diameter [D]
40
Dimension [k] [H]
21.6 (Max.)
Dimension [L]
58.1 (Max.)
Dimension [L1]
19
Dimension [b]
36.5
Dimension [C]
20
Dimension [C1]
0.8
Diameter [g1]
6
Diameter [g2]
3
Dimension [g3]
8
Dimension [r] Min.
1
Dimension [s]
8
Min. Mounting Dimension [f]
29
Max. Tightening Torque Nm
86.2
Basic Dynamic Load Rating [N]
14800
Basic Static Load Rating [N]
25200
Max. Allowable Static Load [N]
25200
Track Load Capacity [N]
14500
Mass (g)
250
Specifications
Overview
Product specifications
Stud Dia. [d]
18
Thread [d]
M18 x 1.5
Diameter [D]
40
Dimension [k] [H]
21.6 (Max.)
Dimension [L]
58.1 (Max.)
Dimension [L1]
19
Dimension [b]
36.5
Dimension [C]
20
Dimension [C1]
0.8
Diameter [g1]
6
Diameter [g2]
3
Dimension [g3]
8
Dimension [r] Min.
1
Dimension [s]
8
Min. Mounting Dimension [f]
29
Max. Tightening Torque Nm
86.2
Basic Dynamic Load Rating [N]
14800
Basic Static Load Rating [N]
25200
Max. Allowable Static Load [N]
25200
Track Load Capacity [N]
14500
Mass (g)
250
