CF10-1UUR

Ondrives Precision Gears and Gearboxes Part number CF10-1UUR

CF10-1UUR

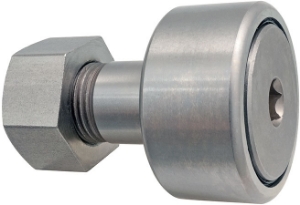

Steel Cam Follower with Crowned Outer Ring, 10mm Stud Dia, 26mm Bearing Dia.
Ondrives Precision Gears and Gearboxes Part number CF10-1UUR Ondrives Precision Gears and Gearboxes Part number CF10-1UUR Ondrives Precision Gears and Gearboxes Part number CF10-1UUR Ondrives Precision Gears and Gearboxes Part number CF10-1UUR Ondrives Precision Gears and Gearboxes Part number CF10-1UUR

Product specifications

Stud Dia. [d]10
Thread [d]M10 x 1.25
Diameter [D]26
Dimension [k] [H]13.2 (Max.)
Dimension [L]36.2 (Max.)
Dimension [L1]12
Dimension [b]23
Dimension [C]12
Dimension [C1]0.6
Dimension [r] Min.0.3
Dimension [s]4
Min. Mounting Dimension [f]16
Max. Tightening Torque Nm13.8
Basic Dynamic Load Rating [N]5430
Basic Static Load Rating [N]6890
Max. Allowable Static Load [N]6890
Track Load Capacity [N]1610
Mass (g)60

Product specifications

Stud Dia. [d]10
Thread [d]M10 x 1.25
Diameter [D]26
Dimension [k] [H]13.2 (Max.)
Dimension [L]36.2 (Max.)
Dimension [L1]12
Dimension [b]23
Dimension [C]12
Dimension [C1]0.6
Dimension [r] Min.0.3
Dimension [s]4
Min. Mounting Dimension [f]16
Max. Tightening Torque Nm13.8
Basic Dynamic Load Rating [N]5430
Basic Static Load Rating [N]6890
Max. Allowable Static Load [N]6890
Track Load Capacity [N]1610
Mass (g)60
