CSS-20

Ondrives Precision Gears and Gearboxes Part number CSS-20

CSS-20

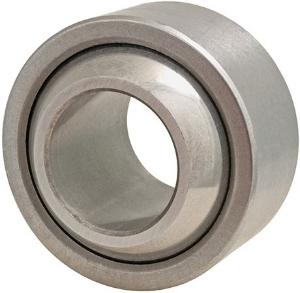

Steel Spherical Bearing, 20mm Bore.
Ondrives Precision Gears and Gearboxes Part number CSS-20 Ondrives Precision Gears and Gearboxes Part number CSS-20

Product specifications

Diameter [d] H720
Diameter [A] h640
Dimension [W]25 +0 / -0.12
Dimension [k] [H]18 +0 / -0.24
Diameter [F]24.3
Ball Diameter [B]34.925
Radius [R]0.3
Max. Tilt Angle14°
Max. Static Load [kN]125
Mass (g)150

Product specifications

Diameter [d] H720
Diameter [A] h640
Dimension [W]25 +0 / -0.12
Dimension [k] [H]18 +0 / -0.24
Diameter [F]24.3
Ball Diameter [B]34.925
Radius [R]0.3
Max. Tilt Angle14°
Max. Static Load [kN]125
Mass (g)150
