CSS-08

Ondrives Precision Gears and Gearboxes Part number CSS-08

CSS-08

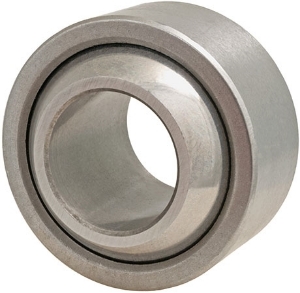

Steel Spherical Bearing, 8mm Bore.
Ondrives Precision Gears and Gearboxes Part number CSS-08 Ondrives Precision Gears and Gearboxes Part number CSS-08

Product specifications

Diameter [d] H78
Diameter [A] h619
Dimension [W]12 +0 / -0.12
Dimension [k] [H]9 +0 / -0.24
Diameter [F]10.4
Ball Diameter [B]15.875
Radius [R]0.3
Max. Tilt Angle14°
Max. Static Load [kN]28
Mass (g)16

Product specifications

Diameter [d] H78
Diameter [A] h619
Dimension [W]12 +0 / -0.12
Dimension [k] [H]9 +0 / -0.24
Diameter [F]10.4
Ball Diameter [B]15.875
Radius [R]0.3
Max. Tilt Angle14°
Max. Static Load [kN]28
Mass (g)16
