CSS-06

Ondrives Precision Gears and Gearboxes Part number CSS-06

CSS-06

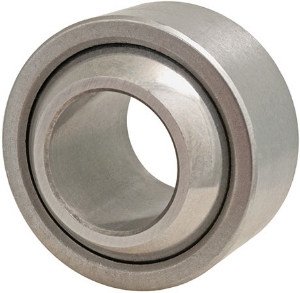

Steel Spherical Bearing, 6mm Bore.
Ondrives Precision Gears and Gearboxes Part number CSS-06 Ondrives Precision Gears and Gearboxes Part number CSS-06

Product specifications

Diameter [d] H76
Diameter [A] h616
Dimension [W]9 +0 / -0.12
Dimension [k] [H]6.75 +0 / -0.24
Diameter [F]8.9
Ball Diameter [B]12.7
Radius [R]0.3
Max. Tilt Angle13°
Max. Static Load [kN]17
Mass (g)9
