CSS-05

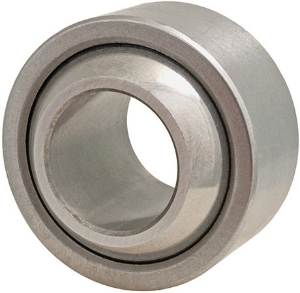

Ondrives Precision Gears and Gearboxes Part number CSS-05

CSS-05

Steel Spherical Bearing, 5mm Bore.
Ondrives Precision Gears and Gearboxes Part number CSS-05 Ondrives Precision Gears and Gearboxes Part number CSS-05

Product specifications

Diameter [d] H75
Diameter [A] h613
Dimension [W]8 +0 / -0.12
Dimension [k] [H]6 +0 / -0.24
Diameter [F]7.7
Ball Diameter [B]11.11
Radius [R]0.3
Max. Tilt Angle13°
Max. Static Load [kN]13
Mass (g)6

Product specifications

Diameter [d] H75
Diameter [A] h613
Dimension [W]8 +0 / -0.12
Dimension [k] [H]6 +0 / -0.24
Diameter [F]7.7
Ball Diameter [B]11.11
Radius [R]0.3
Max. Tilt Angle13°
Max. Static Load [kN]13
Mass (g)6
