685

Ondrives Precision Gears and Gearboxes Part number 685

685

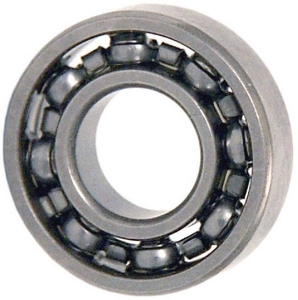

Steel Miniature Ball Bearing. Open Type. 5mm Bore
Ondrives Precision Gears and Gearboxes Part number 685 Ondrives Precision Gears and Gearboxes Part number 685

Product specifications

Bore Diameter [d]5
Diameter [A]11
Dimension [B]3
Dimension [r] Min.0.15
Static Load Rating [N]275
Dynamic Load Rating [N]696
Max. Speed [rpm]53000
