CFS4

Ondrives Precision Gears and Gearboxes Part number CFS4

CFS4

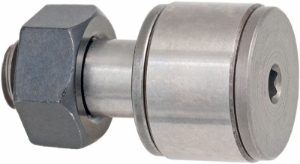

Steel Miniature Cam Follower with Bearings Cage 4mm Stud Dia, 8mm Bearing Dia.
Ondrives Precision Gears and Gearboxes Part number CFS4 Ondrives Precision Gears and Gearboxes Part number CFS4 Ondrives Precision Gears and Gearboxes Part number CFS4 Ondrives Precision Gears and Gearboxes Part number CFS4 Ondrives Precision Gears and Gearboxes Part number CFS4

Product specifications

Stud Dia. [d]4
Thread [d]M4 x 0.7
Diameter [D]8
Dimension [k] [H]7
Dimension [L]15
Dimension [L1]4
Dimension [b]8
Dimension [C]5
Dimension [C1]1
Dimension [s]1.5
Min. Mounting Dimension [f]7.7
Max. Tightening Torque Nm77.7
Basic Dynamic Load Rating [N]1120
Basic Static Load Rating [N]1120
Max. Allowable Static Load [N]919
Track Load Capacity [N]799
Mass (g)4

Product specifications

Stud Dia. [d]4
Thread [d]M4 x 0.7
Diameter [D]8
Dimension [k] [H]7
Dimension [L]15
Dimension [L1]4
Dimension [b]8
Dimension [C]5
Dimension [C1]1
Dimension [s]1.5
Min. Mounting Dimension [f]7.7
Max. Tightening Torque Nm77.7
Basic Dynamic Load Rating [N]1120
Basic Static Load Rating [N]1120
Max. Allowable Static Load [N]919
Track Load Capacity [N]799
Mass (g)4
