CFS2V

Ondrives Precision Gears and Gearboxes Part number CFS2V

CFS2V

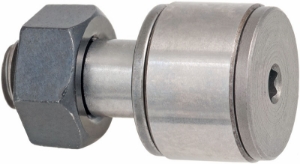

Steel Miniature Cam Follower with Full Complement Bearings 2mm Stud Dia, 4.5mm Bearing Dia.
Ondrives Precision Gears and Gearboxes Part number CFS2V Ondrives Precision Gears and Gearboxes Part number CFS2V Ondrives Precision Gears and Gearboxes Part number CFS2V Ondrives Precision Gears and Gearboxes Part number CFS2V Ondrives Precision Gears and Gearboxes Part number CFS2V

Product specifications

Stud Dia. [d]2
Thread [d]M2 x 0.4
Diameter [D]4.5
Dimension [k] [H]4
Dimension [L]8
Dimension [L1]2
Dimension [b]4
Dimension [C]2.5
Dimension [C1]0.7
Dimension [s]0.9
Min. Mounting Dimension [f]4.3
Max. Tightening Torque Nm9.1
Basic Dynamic Load Rating [N]768
Basic Static Load Rating [N]734
Max. Allowable Static Load [N]229
Track Load Capacity [N]220
Mass (g)0.6

Product specifications

Stud Dia. [d]2
Thread [d]M2 x 0.4
Diameter [D]4.5
Dimension [k] [H]4
Dimension [L]8
Dimension [L1]2
Dimension [b]4
Dimension [C]2.5
Dimension [C1]0.7
Dimension [s]0.9
Min. Mounting Dimension [f]4.3
Max. Tightening Torque Nm9.1
Basic Dynamic Load Rating [N]768
Basic Static Load Rating [N]734
Max. Allowable Static Load [N]229
Track Load Capacity [N]220
Mass (g)0.6
