6900

Ondrives Precision Gears and Gearboxes Part number 6900

6900

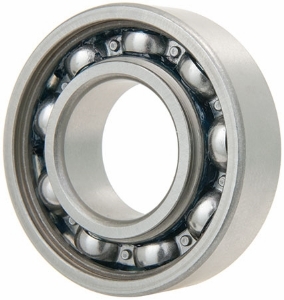

Steel Single Row Deep Groove Ball Bearing. Open Type. 10mm Bore
Ondrives Precision Gears and Gearboxes Part number 6900 Ondrives Precision Gears and Gearboxes Part number 6900

Product specifications

Bore Diameter [d]10
Diameter [A]22
Dimension [B]6
Dimension [r] Min.0.3
Dynamic Load Rating [N]2700
Static Load Rating [N]1270
Max. Speed [rpm]36000
Mass [kg]0.009
