Home
Bearings
Radial Ball Bearings
Deep Groove Ball Bearings
Steel Deep Groove Open Bearings
6803
6803

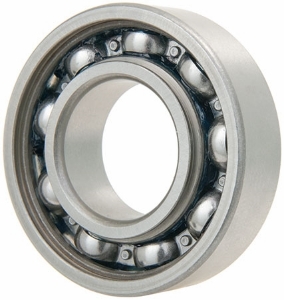

Steel Single Row Deep Groove Ball Bearing. Open Type. 17mm Bore
Product specifications
Bore Diameter [d]
17
Diameter [A]
26
Dimension [B]
5
Dimension [r] Min.
0.3
Dynamic Load Rating [N]
2230
Static Load Rating [N]
1460
Max. Speed [rpm]
28000
Mass [kg]
0.008
Specifications
Overview
Product specifications
Bore Diameter [d]
17
Diameter [A]
26
Dimension [B]
5
Dimension [r] Min.
0.3
Dynamic Load Rating [N]
2230
Static Load Rating [N]
1460
Max. Speed [rpm]
28000
Mass [kg]
0.008
Information
Quality Certificate - AS9100D (EN9100:2018, JISQ9100:2016, KS Q 9100:2018), ISO9001:2015
