6315

Ondrives Precision Gears and Gearboxes Part number 6315

6315

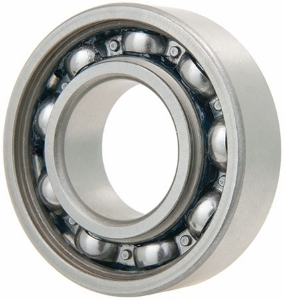

Steel Single Row Deep Groove Ball Bearing. Open Type. 75mm Bore
Ondrives Precision Gears and Gearboxes Part number 6315 Ondrives Precision Gears and Gearboxes Part number 6315

Product specifications

Bore Diameter [d] 75
Diameter [A] 160
Dimension [B] 37
Dimension [r] Min. 2.1
Dynamic Load Rating [N] 113000
Static Load Rating [N] 77000
Max. Speed [rpm] 5000
Mass [kg] 3.08

Product specifications

Bore Diameter [d] 75
Diameter [A] 160
Dimension [B] 37
Dimension [r] Min. 2.1
Dynamic Load Rating [N] 113000
Static Load Rating [N] 77000
Max. Speed [rpm] 5000
Mass [kg] 3.08
