6302

Ondrives Precision Gears and Gearboxes Part number 6302

6302

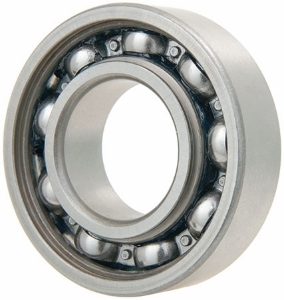

Steel Single Row Deep Groove Ball Bearing. Open Type. 15mm Bore
Ondrives Precision Gears and Gearboxes Part number 6302 Ondrives Precision Gears and Gearboxes Part number 6302

Product specifications

Bore Diameter [d]15
Diameter [A]42
Dimension [B]13
Dimension [r] Min.1
Dynamic Load Rating [N]11400
Static Load Rating [N]5450
Max. Speed [rpm]21000
Mass [kg]0.082

Product specifications

Bore Diameter [d]15
Diameter [A]42
Dimension [B]13
Dimension [r] Min.1
Dynamic Load Rating [N]11400
Static Load Rating [N]5450
Max. Speed [rpm]21000
Mass [kg]0.082
