6208

Ondrives Precision Gears and Gearboxes Part number 6208

6208

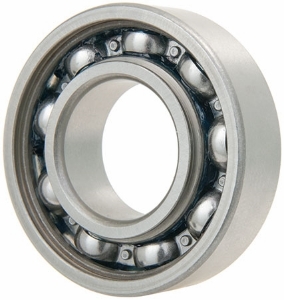

Steel Single Row Deep Groove Ball Bearing. Open Type. 40mm Bore
Ondrives Precision Gears and Gearboxes Part number 6208 Ondrives Precision Gears and Gearboxes Part number 6208

Product specifications

Bore Diameter [d]40
Diameter [A]80
Dimension [B]18
Dimension [r] Min.1.1
Dynamic Load Rating [N]29100
Static Load Rating [N]17800
Max. Speed [rpm]10000
Mass [kg]0.366

Product specifications

Bore Diameter [d]40
Diameter [A]80
Dimension [B]18
Dimension [r] Min.1.1
Dynamic Load Rating [N]29100
Static Load Rating [N]17800
Max. Speed [rpm]10000
Mass [kg]0.366
