6013

Ondrives Precision Gears and Gearboxes Part number 6013

6013

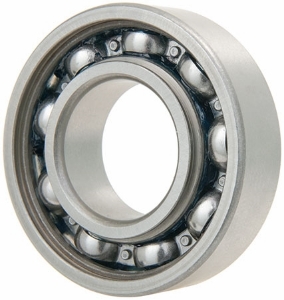

Steel Single Row Deep Groove Ball Bearing. Open Type. 65mm Bore
Ondrives Precision Gears and Gearboxes Part number 6013 Ondrives Precision Gears and Gearboxes Part number 6013

Product specifications

Bore Diameter [d]65
Diameter [A]100
Dimension [B]18
Dimension [r] Min.1.1
Dynamic Load Rating [N]30500
Static Load Rating [N]25200
Max. Speed [rpm]7700
Mass [kg]0.421

Product specifications

Bore Diameter [d]65
Diameter [A]100
Dimension [B]18
Dimension [r] Min.1.1
Dynamic Load Rating [N]30500
Static Load Rating [N]25200
Max. Speed [rpm]7700
Mass [kg]0.421
