SBLM-25

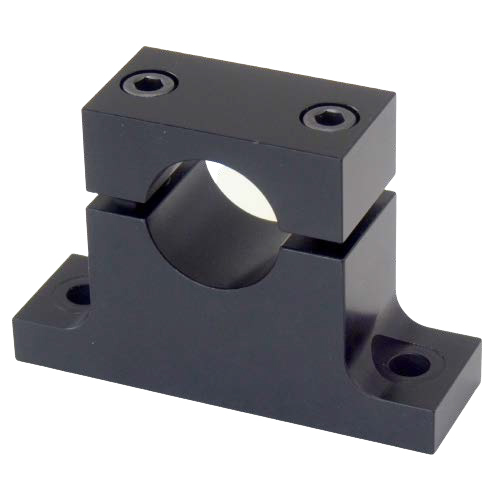

SBLM Shaft Support

SBLM-25

Aluminium Shaft Support,Standard Height, Top Loading

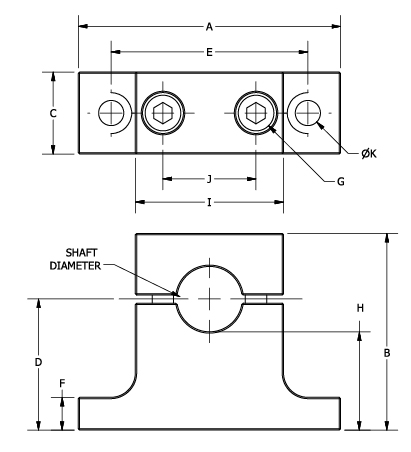

SBLM Shaft Support Drawing

Product specifications

TypeStandard
MaterialAluminium
Shaft Diameter25
Width [A]74
Height [B]55
Depth [C]25
Shaft Centre Line Height [D] +0/-0.0535
Fixing Centre Distance [E]60
Tab Thickness [F]9
Capscrew [G]M6
[H]22.5
[I]44
[J]34
Screw Clearance [K]Ø6.6
Mass [kg]0.158

Product specifications

TypeStandard
MaterialAluminium
Shaft Diameter25
Width [A]74
Height [B]55
Depth [C]25
Shaft Centre Line Height [D] +0/-0.0535
Fixing Centre Distance [E]60
Tab Thickness [F]9
Capscrew [G]M6
[H]22.5
[I]44
[J]34
Screw Clearance [K]Ø6.6
Mass [kg]0.158
