SBLM-12

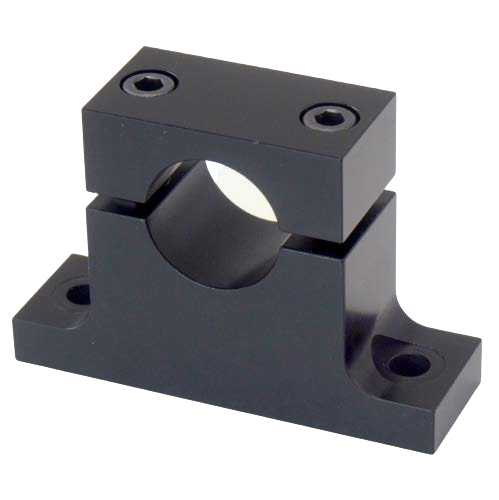

SBLM Shaft Support

SBLM-12

Aluminium Shaft Support,Standard Height, Top Loading

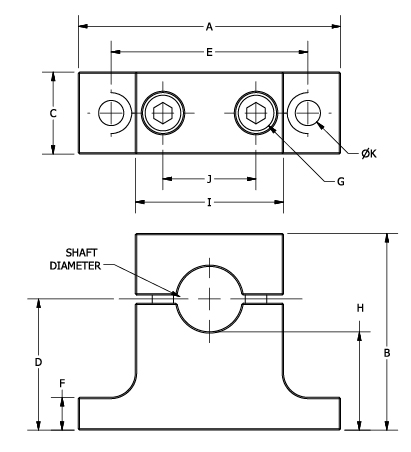

SBLM Shaft Support Drawing

Product specifications

TypeStandard
MaterialAluminium
Shaft Diameter12
Width [A]40
Height [B]30
Depth [C]12
Shaft Centre Line Height [D] +0/-0.0520
Fixing Centre Distance [E]32
Tab Thickness [F]5.5
Capscrew [G]M3
[H]14
[I]22
[J]17
Screw Clearance [K]Ø5.5
Mass [kg]0.023

Product specifications

TypeStandard
MaterialAluminium
Shaft Diameter12
Width [A]40
Height [B]30
Depth [C]12
Shaft Centre Line Height [D] +0/-0.0520
Fixing Centre Distance [E]32
Tab Thickness [F]5.5
Capscrew [G]M3
[H]14
[I]22
[J]17
Screw Clearance [K]Ø5.5
Mass [kg]0.023
