FU13SS

Ondrives Precision Gears and Gearboxes Part number FU13SS

FU13SS

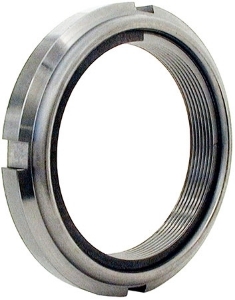

Steel Bearing Locknut, M65
Ondrives Precision Gears and Gearboxes Part number FU13SS Ondrives Precision Gears and Gearboxes Part number FU13SS Ondrives Precision Gears and Gearboxes Part number FU13SS

Product specifications

Thread [M x P]M65 x 2
Diameter [D]85 +0 / -0.5
Diameter [D1]79 +0 / -0.5
Dimension [k] [H]15 ±1.5
Dimension [K]12
Dimension [W]79 +0 / -0.5
Dimension [T]3
Dimension [S]7 ±0.2
Prevailing Torque [Nm]50
Proof Load [kN]188.68
Max. Tightening Torque Nm1595.2

Product specifications

Thread [M x P]M65 x 2
Diameter [D]85 +0 / -0.5
Diameter [D1]79 +0 / -0.5
Dimension [k] [H]15 ±1.5
Dimension [K]12
Dimension [W]79 +0 / -0.5
Dimension [T]3
Dimension [S]7 ±0.2
Prevailing Torque [Nm]50
Proof Load [kN]188.68
Max. Tightening Torque Nm1595.2
