FU12SS

Ondrives Precision Gears and Gearboxes Part number FU12SS

FU12SS

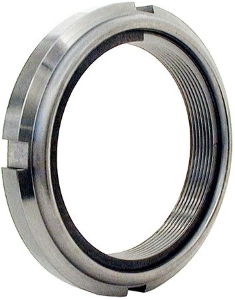

Steel Bearing Locknut, M60
Ondrives Precision Gears and Gearboxes Part number FU12SS Ondrives Precision Gears and Gearboxes Part number FU12SS Ondrives Precision Gears and Gearboxes Part number FU12SS

Product specifications

Thread [M x P] M60 x 2
Diameter [D] 80 +0 / -0.5
Diameter [D1] 73 +0 / -0.5
Dimension [k] [H] 13.5 ±1
Dimension [K] 11
Dimension [W] 74 +0 / -0.5
Dimension [T] 3
Dimension [S] 7 ±0.2
Prevailing Torque [Nm] 41.2
Proof Load [kN] 158.33
Max. Tightening Torque Nm 1238.1
