S6203-2RS

Ondrives Precision Gears and Gearboxes Part number S6203-2RS

S6203-2RS

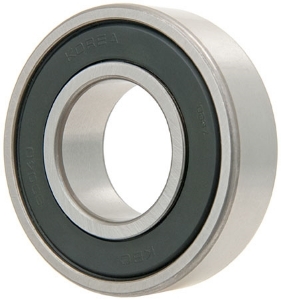

Stainless Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 17mm Bore
Ondrives Precision Gears and Gearboxes Part number S6203-2RS Ondrives Precision Gears and Gearboxes Part number S6203-2RS

Product specifications

Diameter [d]17
Diameter [A]40
Dimension [B]12
Dimension [r] Min.0.6
Dynamic Load Rating [N]7972.81
Static Load Rating [N]3775.56
Max. Speed [rpm]17000

Product specifications

Diameter [d]17
Diameter [A]40
Dimension [B]12
Dimension [r] Min.0.6
Dynamic Load Rating [N]7972.81
Static Load Rating [N]3775.56
Max. Speed [rpm]17000
