SRC-9.53

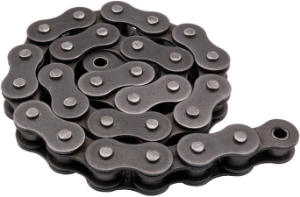

Ondrives Precision Gears and Gearboxes Part number SRC-9.53

SRC-9.53

Simplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Ondrives Precision Gears and Gearboxes Part number SRC-9.53 Ondrives Precision Gears and Gearboxes Part number SRC-9.53

Product specifications

MaterialSteel DIN 8187
ISO No.06B-1
Pitch/Lead9.525
Dimension [b1]5.72
Dimension [b2]8.53
Dimension [d1]3.28
Dimension [d3]6.35
Dimension [F1]13.5
Dimension [F2]16.8
Dimension [h]8.2
Dimension [s1]1.3
Dimension [s2]1.3
Bearing Area [f cm²]0.28
Breaking Load [FB N]9000
Chain Weight [q kg/m]0.41

Product specifications

MaterialSteel DIN 8187
ISO No.06B-1
Pitch/Lead9.525
Dimension [b1]5.72
Dimension [b2]8.53
Dimension [d1]3.28
Dimension [d3]6.35
Dimension [F1]13.5
Dimension [F2]16.8
Dimension [h]8.2
Dimension [s1]1.3
Dimension [s2]1.3
Bearing Area [f cm²]0.28
Breaking Load [FB N]9000
Chain Weight [q kg/m]0.41
