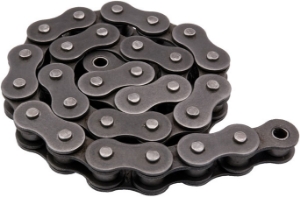

SRC-8
SRC-8
Simplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Product specifications
Material
Steel DIN 8187
ISO No.
05B-1
Pitch/Lead
8
Dimension [b1]
3
Dimension [b2]
4.77
Dimension [d1]
2.31
Dimension [d3]
5
Dimension [F1]
8.6
Dimension [F2]
11.7
Dimension [h]
7.1
Dimension [s1]
0.75
Dimension [s2]
0.75
Bearing Area [f cm²]
0.11
Breaking Load [FB N]
5000
Chain Weight [q kg/m]
0.18
Specifications
Overview
Product specifications
Material
Steel DIN 8187
ISO No.
05B-1
Pitch/Lead
8
Dimension [b1]
3
Dimension [b2]
4.77
Dimension [d1]
2.31
Dimension [d3]
5
Dimension [F1]
8.6
Dimension [F2]
11.7
Dimension [h]
7.1
Dimension [s1]
0.75
Dimension [s2]
0.75
Bearing Area [f cm²]
0.11
Breaking Load [FB N]
5000
Chain Weight [q kg/m]
0.18
