SRC-38.1

SRC-38.1

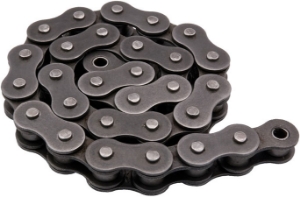

Simplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606

Product specifications

MaterialSteel DIN 8187
ISO No.24B-1
Pitch/Lead38.1
Dimension [b1]25.4
Dimension [b2]37.9
Dimension [d1]14.63
Dimension [d3]25.4
Dimension [F1]53.4
Dimension [F2]60
Dimension [h]33.4
Dimension [s1]5.5
Dimension [s2]5
Bearing Area [f cm²]5.54
Breaking Load [FB N]160000
Chain Weight [q kg/m]6.7
