SRC-31.75

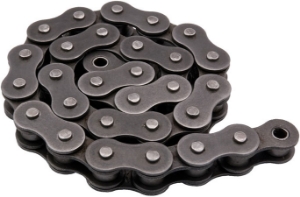

Ondrives Precision Gears and Gearboxes Part number SRC-31.75

SRC-31.75

Simplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Ondrives Precision Gears and Gearboxes Part number SRC-31.75 Ondrives Precision Gears and Gearboxes Part number SRC-31.75

Product specifications

MaterialSteel DIN 8187
ISO No.20B-1
Pitch/Lead31.75
Dimension [b1]19.56
Dimension [b2]29.01
Dimension [d1]10.19
Dimension [d3]19.05
Dimension [F1]43.2
Dimension [F2]49.3
Dimension [h]26.4
Dimension [s1]4.5
Dimension [s2]3.5
Bearing Area [f cm²]2.96
Breaking Load [FB N]95000
Chain Weight [q kg/m]3.6
