SRC-12.7/7.75

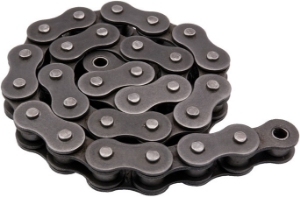

Ondrives Precision Gears and Gearboxes Part number SRC-12.7/7.75

SRC-12.7/7.75

Simplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Ondrives Precision Gears and Gearboxes Part number SRC-12.7/7.75 Ondrives Precision Gears and Gearboxes Part number SRC-12.7/7.75

Product specifications

MaterialSteel DIN 8187
ISO No.08B-1
Pitch/Lead12.7
Dimension [b1]7.75
Dimension [b2]11.3
Dimension [d1]4.45
Dimension [d3]8.51
Dimension [F1]17
Dimension [F2]20.9
Dimension [h]11.8
Dimension [s1]1.6
Dimension [s2]1.6
Bearing Area [f cm²]0.5
Breaking Load [FB N]18000
Chain Weight [q kg/m]0.7

Product specifications

MaterialSteel DIN 8187
ISO No.08B-1
Pitch/Lead12.7
Dimension [b1]7.75
Dimension [b2]11.3
Dimension [d1]4.45
Dimension [d3]8.51
Dimension [F1]17
Dimension [F2]20.9
Dimension [h]11.8
Dimension [s1]1.6
Dimension [s2]1.6
Bearing Area [f cm²]0.5
Breaking Load [FB N]18000
Chain Weight [q kg/m]0.7
